Mastering Software Architectural Diagrams for Modern Systems

A practical guide to software architectural diagrams. Learn to use C4, UML, and other patterns to build scalable, maintainable, and AI-ready systems.

Think of a software architectural diagram as the blueprint for a digital system. It’s a visual map that lays out the pieces of your software—the components, services, and databases—and shows how they connect and interact. For anyone involved in a complex project, from a new developer to the CEO, these diagrams are essential for planning, building, and keeping systems running smoothly.

Why Software Needs a Blueprint

Would you build a skyscraper without a blueprint? Of course not. You’d end up with misaligned foundations, plumbing clashing with electrical wiring, and floors that can’t hold the weight. Yet many teams dive into building software that way, and the result is technical debt, slow onboarding, and expensive rewrites.

Architectural diagrams give you a high-level view of how all the moving parts fit together, turning abstract code into a map everyone can understand. This clarity is the secret to building software that can grow without collapsing under its own weight.

Bridging Communication Gaps

One of the sneakiest problems in software development is “invisible misalignment.” That happens when team members hold slightly different mental models of the system. A product manager might picture a simple change, while an engineer sees a complex choreography across several microservices.

Diagrams expose those hidden assumptions. By creating a single source of truth, they give engineering, product, and leadership a common language about what’s being built and why. This alignment prevents misunderstandings that lead to messy codebases and ensures the team moves in the same direction.

A Foundation for Scalability and Clean Code

A well-thought-out architecture helps developers make decisions that support long-term growth instead of quick fixes. Projects built with clean architecture practices often add features faster and with fewer regressions—because the structure guides development.

If you want to explore the connection between architecture and programming, see our guide on architecture and programming at cleancodeguy.com.

“Architectural diagrams don't just document what exists; they define what’s possible. They let teams reason about complexity, anticipate bottlenecks, and make informed decisions that stand the test of time.”

With AI-assisted development becoming common, having a visual map of your architecture is more important than ever. AI tools work best when they understand structure and intent. A clear diagram gives both human developers and their AI partners the context they need to navigate complexity effectively.

Without that blueprint, you’re guessing. The result is a brittle system that’s frustrating to change and expensive to maintain.

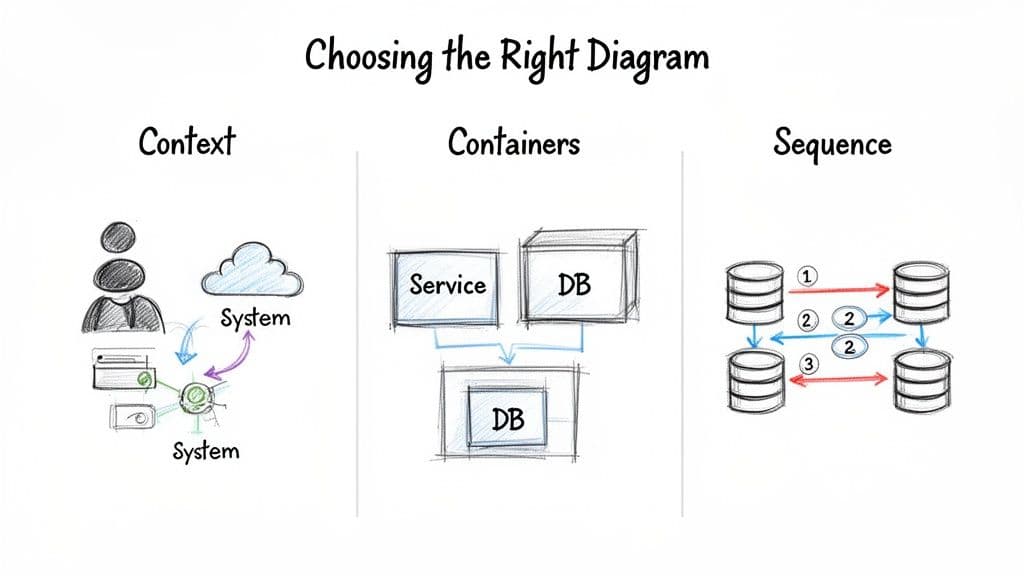

Choosing the Right Diagram for the Job

Not all diagrams are created equal. The wrong one is a fast track to confusion. A highly detailed sequence diagram in a stakeholder meeting will cause blank stares, while a simple context diagram won’t help a developer debugging a microservice.

Match the diagram’s focus to your audience and what you need them to understand.

Think of diagrams as maps. To plan a cross-country trip you need a high-level map showing highways and cities. To navigate a neighborhood you need detailed streets. Choosing the right diagram gives the correct level of detail so your message is clear and useful.

Common Diagram Types and When to Use Them

This cheat sheet covers the heavy hitters you’ll use day to day. Keep it handy and picking the right visual becomes second nature.

The C4 Model: A Modern Approach

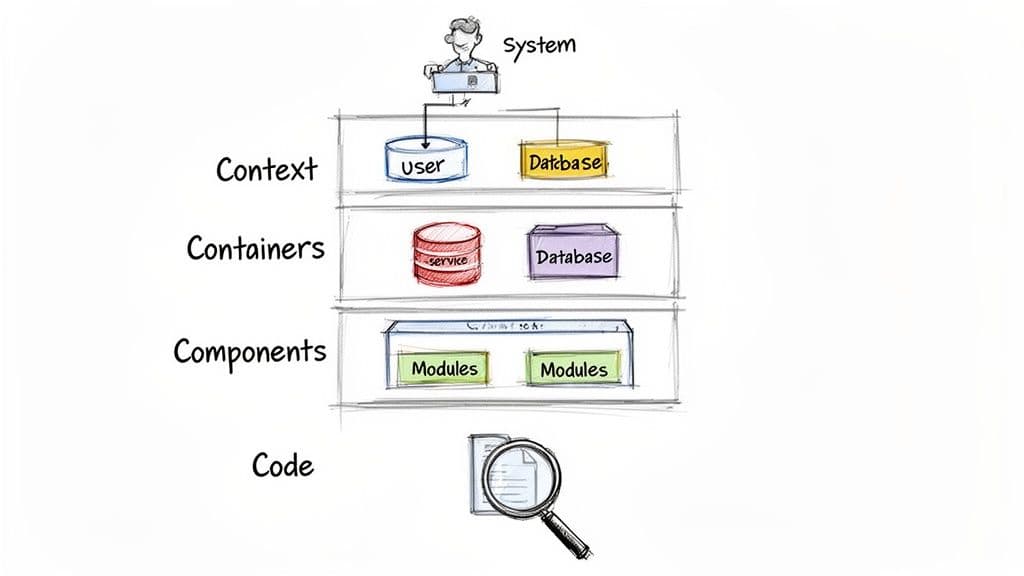

The C4 model is popular because it provides a structured way to zoom in and out of a system. It breaks complexity into four hierarchical levels.

• Level 1: Context — the 10,000-foot view showing the system as a single box and its users or external systems.
• Level 2: Containers — the major runnable parts (web app, API server, database). This view is ideal for development and operations.
• Level 3: Components — internal logical groupings inside a container, such as controllers or services.
• Level 4: Code — the most detailed level, often a UML class diagram, used only for especially complex areas.

C4’s tiered approach ensures you always have the right map for the conversation, preventing overload.

Essential UML and Other Diagram Types

C4 covers structure, while UML excels at behavior and interactions. Use sequence diagrams for workflows, deployment diagrams for mapping to hardware, and use case diagrams to describe user goals.

When selecting a diagram, ask: “Who is my audience, and what do I need them to understand?” That answer dictates the level of abstraction and details you include.

Container diagrams are used by most teams, while many organizations still lack a single source of truth for architecture, which can lead to fragmentation¹.

Beyond C4, sequence diagrams, deployment diagrams, and use case diagrams are indispensable for a complete visual language.

A Practical Deep Dive Into the C4 Model

C4 makes complicated systems easy to understand for almost anyone. Think of it like maps: satellite view, city, neighborhood, then street. C4 gives you that same zoom power.

Level 1: Context Diagram

This is the 10,000-foot view. Show the system as a single box and its interactions with users and external systems. It’s perfect for non-technical audiences who need the big picture.

Example for a project estimation tool:

• Users: Project managers and developers
• System: The estimation platform
• External integrations: Payment gateway and email service

Level 2: Container Diagram

This opens the system to show major runnable parts. A “container” is any deployable unit, not just a Docker container. Use this to onboard engineers quickly and clarify ownership.

Example for the estimation tool:

• SPA (React)
• REST API (Node.js)
• PostgreSQL database
• Authentication service

Level 3: Component Diagram

Zoom into a container and show its internal parts, such as controllers, services, and repositories. Engineers use this when adding features or debugging.

Example: Billing feature in the REST API with BillingController, PaymentService, and InvoiceRepository.

Level 4: Code Diagram

The most detailed view, often a UML class diagram. Use this sparingly. Your IDE and code are usually the best source of truth, so reserve Code diagrams for especially complex components.

Keep Diagrams Living: Integrate Them into Your Workflow

The biggest reason diagrams fail is they become museum pieces. Someone creates one, it gets saved to a wiki, and it slowly goes out of date. An outdated diagram is dangerous because it gives a false sense of confidence.

Diagrams must be living documents that change alongside your codebase.

Treat Diagrams Like Code

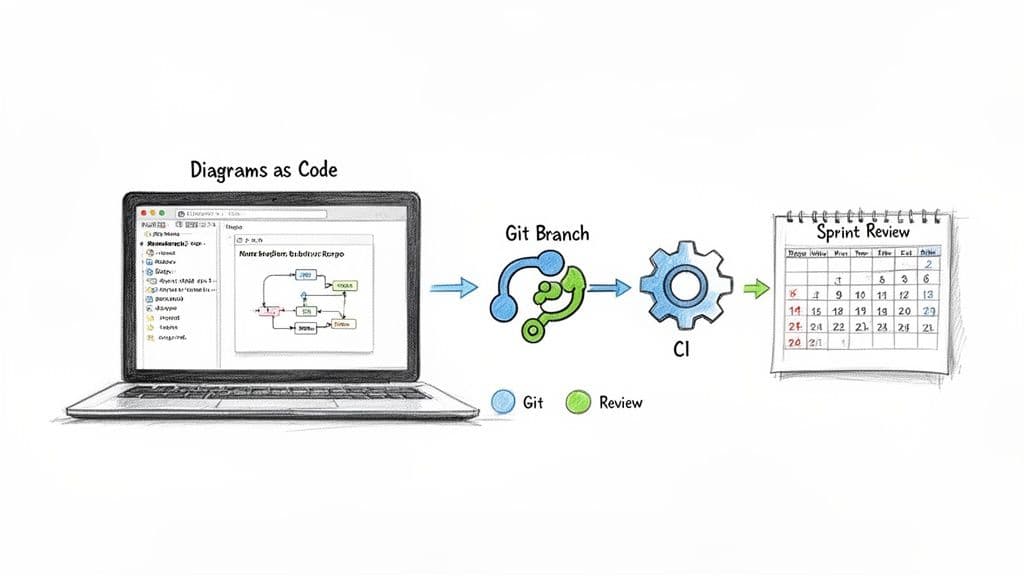

Adopt the Diagrams as Code approach. Tools like PlantUML or Mermaid let you define diagrams in text and generate visuals. Store those definitions in Git beside the code so they get version control and review with pull requests³.

When an API changes, the pull request should include the updated diagram. This keeps documentation in lockstep with implementation.

Make Diagrams Part of Team Rituals

Embed diagrams into your team’s regular processes:

• Sprint planning: Use a Component or Container diagram to scope work.
• Design reviews: Require a diagram with any significant architectural change.
• Onboarding: Give new hires the architecture diagrams first so they get a map before diving into code.

Make updating the diagram easier than explaining the change without one.

Let Automation Do the Heavy Lifting

Modern tools can scan code, cloud environments, and runtime traffic to generate and update diagrams automatically. This makes diagrams a live reflection of your system and removes the risk of stale documentation.

Automated diagrams provide a real-time view that guides teams and reduces manual effort.

Common Diagramming Mistakes to Avoid

Creating a good diagram is both art and discipline. When done right, it brings clarity. When done badly, it creates confusion. Treat diagrams like code and apply the same care.

The God Diagram Anti-Pattern

The “god diagram” tries to cram every component into one visual. It’s the visual equivalent of a 10,000-line function. Don’t do it.

A single diagram should tell one story to a specific audience. If you’re showing everything at once, break it into focused diagrams that follow the C4 levels.

Inconsistent Naming and Notation

Inconsistent names and symbols create friction. If “Authentication Service” is called “Auth API” in one diagram and “User Login Service” in another, people waste time wondering if they’re different.

• Always include a legend.
• Maintain a simple glossary and stick to it.
• Use the same shapes and names across related diagrams.

The California Enterprise Architecture Framework is an example of how consistent graphical models align strategy and technology, and one project reported faster alignment after standardizing its visuals².

Mixing Levels of Abstraction

Don’t show continents and street signs on the same map. Keep Context diagrams high-level and save tables and fields for Component or Code diagrams. The C4 model helps enforce this discipline.

Architectural Diagrams in the Age of AI

AI coding assistants like GitHub Copilot and Cursor are changing how we write code, but they don’t inherently understand the “why” behind your system. Their suggestions improve when they get architectural context.

Think of AI as a fast junior developer. It can write code, but without a map it guesses. A clear, up-to-date diagram gives AI the context to make smarter suggestions that respect architectural boundaries.

Fuelling Smarter AI Suggestions

When an AI can see a clean architecture, its suggestions become architecturally sound. It’s less likely to suggest adding login logic inside a random microservice if the diagram shows a dedicated authentication service.

Modernizing Legacy Systems with Confidence

When modernizing a monolith, diagrams provide guardrails. Capture your current architecture, feed it to AI tools, and use that context to identify refactoring targets, generate boilerplate, and maintain consistency.

This turns risky manual refactoring into a structured, AI-assisted modernization effort.

Frequently Asked Questions

How often should we update our diagrams?

Treat diagrams as living documents. Update them for meaningful architectural changes, such as adding a new microservice or changing core communication patterns. Review high-level diagrams quarterly and update detailed diagrams in the same pull request that implements the change.

What are the best tools for diagramming?

Choose based on your workflow:

• Collaborative whiteboards like Miro and Lucidchart for brainstorming and design sessions.
• Diagrams as Code tools like PlantUML and Mermaid for versioned diagrams in Git.
• Automated platforms like Structurizr or IcePanel for syncing diagrams with code and cloud environments.

How do we get the whole team on board?

Start small. Use a single, simple diagram for a confusing area and show how it speeds decisions during planning. Position diagrams as tools for faster development, not more documentation.

Quick Q&A — Key Takeaways

Q: What diagram should I start with?

A: Start with a Container diagram for engineering teams and a Context diagram for non-technical stakeholders.

Q: How do I keep diagrams up to date?

A: Treat them like code: store diagram definitions in Git, update them in the same pull request as code changes, and automate where possible.

Q: How do diagrams help AI tooling?

A: Diagrams provide high-level context so AI tools generate code that respects boundaries and existing architecture, reducing risky suggestions.
