Concentric Ring Architecture for Scalable Software

Summary: Discover the concentric ring model and learn how to build scalable, testable, and maintainable applications by isolating core business logic from external frameworks and services.

Introduction

The concentric ring architecture arranges code in layers so dependencies only point inward. By isolating your core business rules from UI, databases, and third-party tools, you get a codebase that’s easier to test, maintain, and adapt as technology changes.

What Is the Concentric Ring Model?

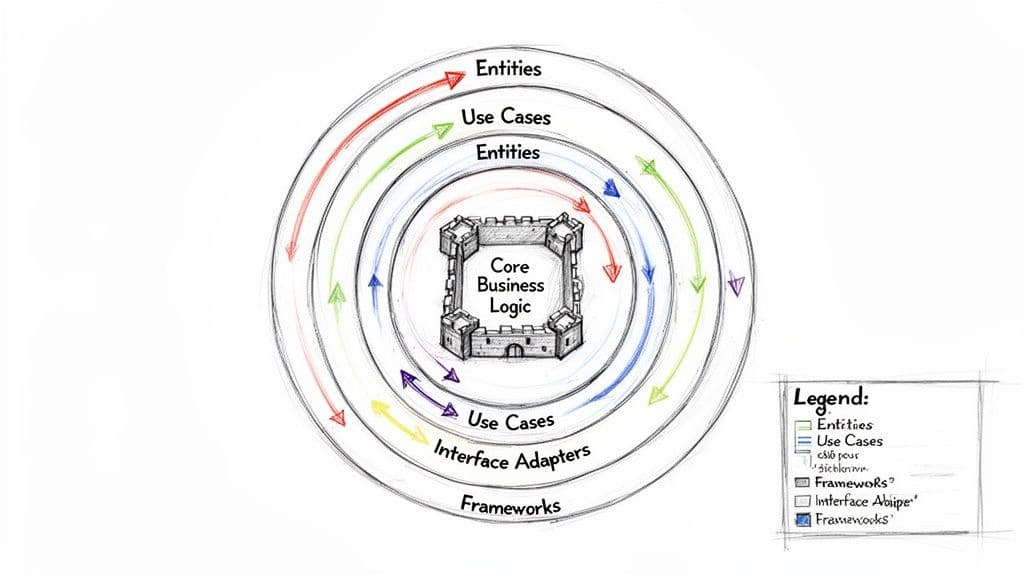

Think of your application as a fortress: the most valuable assets—your business logic—sit at the centre, protected by concentric walls. Each wall is a layer of code. The dependency rule is simple and strict: source code dependencies may only point inward. Inner layers know nothing about outer layers.

This pattern typically maps to four hierarchical layers: Entities, Use Cases, Interface Adapters, and Frameworks & Drivers. That single constraint—dependencies always point inward—keeps your core stable and portable.

Why Separation of Concerns Matters

When business rules are decoupled from UI and infrastructure, you can change or replace the outer layers without touching the heart of your system. That prevents small changes—like swapping a UI library—from causing broad breakages and long bug hunts.

Key Benefits

• Framework independence: Core logic isn’t tied to React, Node, or any specific tool.
• Enhanced testability: Entities and Use Cases can be unit-tested in isolation.
• Improved maintainability: Clear boundaries make it easier for teams to modify code safely.
• Adaptability: Outer layers can be replaced as tech evolves without rewriting the core.

The Four Layers Explained

Below is a practical look at each layer from the centre outward.

This structure isn’t just conceptual; teams who adopt it report measurable improvements in quality and velocity¹.

Layer 1 — Entities (Core)

Entities are pure business objects and rules: TypeScript interfaces or classes that contain domain logic and data structures. They have zero knowledge of databases, HTTP, or frameworks.

Example: an Order entity might include orderId, items, and a method like calculateTotal().

Layer 2 — Use Cases (Application Logic)

Use Cases (or Interactors) orchestrate application-specific operations—what the app does. They depend only on Entities and on abstract interfaces (ports) to interact with persistence or other services.

This separation is a cornerstone of Clean Architecture and its variants⁴.

Layer 3 — Interface Adapters

Adapters translate between the inner layers and the external world. Controllers, presenters, and repositories live here. They convert HTTP requests into calls to Use Cases and format Use Case outputs for clients or persistence.

Layer 4 — Frameworks & Drivers (Outer Layer)

The outermost layer contains volatile, replaceable technologies: React, Next.js, databases, and third-party APIs. Treat them as plugins that can be swapped without touching the inner business logic.

How This Helps in Practice

Architecting this way reduces technical debt and speeds up development over time. For teams that adopt the four-layer structure, audits have found significant reductions in bug rates after refactoring¹. Clear boundaries make testing and refactoring far less risky, shortening QA cycles and cutting long-term upkeep costs².

Testing Becomes Fast and Reliable

Because Entities and Use Cases are isolated from infrastructure, you can write unit tests without a database, web server, or front end. Tests are faster, more reliable, and enable confident refactoring.

For managers, this means fewer production regressions and shorter delivery cycles.

Achieving Framework Independence

When business logic isn’t embedded in framework-specific components, you can change UI libraries or databases with minimal impact. That future-proofs your application and lowers the cost of long-term maintenance².

Comparing the Four Rings (Quick Reference)

Practical TypeScript + React Implementation

A clear folder structure maps directly to the concentric rings:

/src
  /domain
    /entities
      - User.ts
    /use-cases
      - CreateUser.ts
  /adapters
    /controllers
      - UserController.ts
    /repositories
      - PostgresUserRepository.ts
  /frameworks
    /http
      - server.ts
    /database
      - connection.ts

This layout keeps core domain code in /domain, translators in /adapters, and external glue in /frameworks.

Example Entity (TypeScript)

// src/domain/entities/User.ts

export interface User {
  id: string;
  name: string;
  email: string;
}

Example Use Case

// src/domain/use-cases/CreateUser.ts

import { User } from '../entities/User';
import { IUserRepository } from '../repositories/IUserRepository';

export class CreateUser {
  constructor(private userRepository: IUserRepository) {}

  async execute(name: string, email: string): Promise<User> {
    const newUser = { id: 'some-uuid', name, email };
    return this.userRepository.save(newUser);
  }
}

The Use Case depends only on the User entity and an abstract IUserRepository port.

Example Adapter (Postgres Repository)

// src/adapters/repositories/PostgresUserRepository.ts

import { IUserRepository } from '../../domain/repositories/IUserRepository';
import { User } from '../../domain/entities/User';
import { db } from '../../frameworks/database/connection';

export class PostgresUserRepository implements IUserRepository {
  async save(user: User): Promise<User> {
    // Save to Postgres (implementation detail)
    console.log(`Saving ${user.name} to Postgres...`);
    return user;
  }
}

Example Controller

// src/adapters/controllers/UserController.ts

import { CreateUser } from '../../domain/use-cases/CreateUser';
import { PostgresUserRepository } from '../repositories/PostgresUserRepository';

export class UserController {
  async createUser(req: Request, res: Response) {
    const userRepository = new PostgresUserRepository();
    const createUserUseCase = new CreateUser(userRepository);

    const user = await createUserUseCase.execute(req.body.name, req.body.email);
    res.status(201).json(user);
  }
}

This flow shows how each layer talks only to its immediate inner neighbour, protecting core logic from change.

AI Pair Programming Benefits

A well-structured codebase is easier for AI tools to understand. When dependencies are predictable and logic is isolated, AI assistants can generate higher-quality code, create focused tests, and support safe refactors. Teams that introduced clear layering saw measurable velocity gains and shorter delivery times in our engagements³.

Migrating a Legacy Codebase

Avoid a big-bang rewrite. Use an incremental approach—often called the strangler fig pattern—to migrate features one piece at a time:

1. Identify an isolated feature to refactor.
2. Implement its Entity and Use Case layers with zero dependencies on legacy code.
3. Build adapters that bridge the new core to the legacy system.

This lets you modernize safely without stopping development.

At Clean Code Guy, we help teams apply these principles with audits and refactors that prepare codebases for AI-assisted development and long-term maintainability. Visit https://cleancodeguy.com to learn more.

Q&A — Quick Answers to Common Questions

Q: How is this different from Hexagonal or Onion Architecture?

A: They share the same dependency-inward principle. The difference is mostly metaphor and emphasis: Hexagonal highlights ports and adapters, Onion emphasizes layered cores, and the concentric ring model uses a simple four-layer visual that many teams find easier to adopt.

Q: Is this overkill for small projects?

A: For throwaway prototypes, it can be more than you need. But if a project may grow or be maintained by others, establishing boundaries early prevents complexity and technical debt later.

Q: How do I start converting an existing monolith?

A: Don’t rewrite everything. Use the strangler fig approach: pick an isolated feature, build its domain and use-case layers, then bridge the new code to the legacy system with adapters.
