Discover Model‑View‑ViewModel (MVVM) Architecture for Scalable Apps

Explore Model‑View‑ViewModel architecture in depth with our definitive guide, and learn core concepts and practical patterns for scalable apps.

Introduction

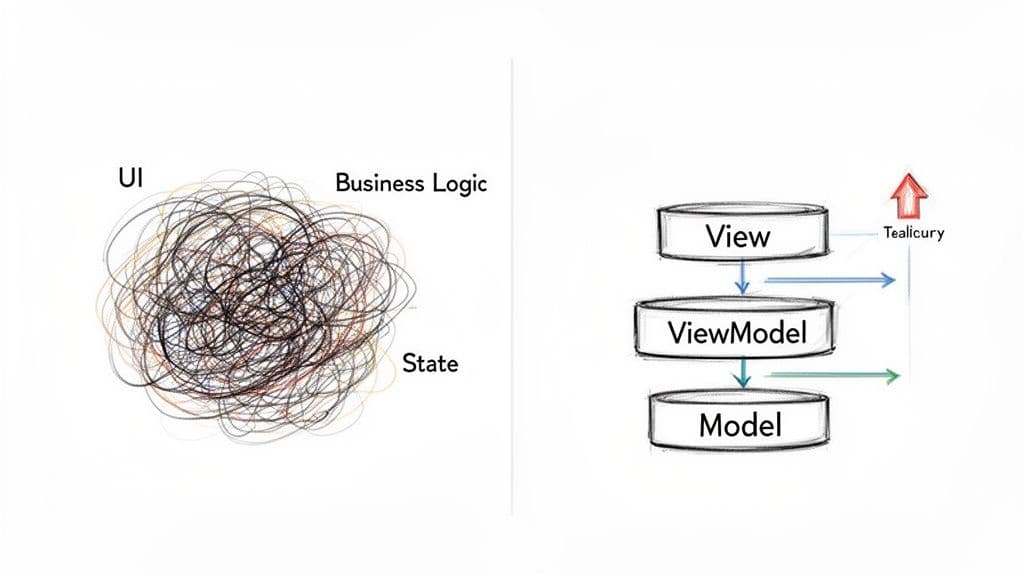

Ever feel like your frontend codebase is a tangle of UI, business logic, and state? The Model‑View‑ViewModel (MVVM) pattern is a proven way to separate those concerns so applications become easier to test, debug, and scale. This guide breaks MVVM down into practical concepts and shows how to apply it in a React / Next.js stack for clearer, faster development.

Why your codebase needs MVVM

When UI rendering, data handling, and business rules are mixed together, teams hit a painful cycle: features slow down, bugs multiply, and onboarding new developers becomes harder. MVVM enforces a clean separation of concerns so each part is easier to reason about and test. This separation makes each component independently testable and maintainable¹.

The pattern splits your app into three parts:

The three core components

• The Model: Holds data and business logic—fetching, validating, and persisting—without knowing how data is displayed.
• The View: The UI only. It renders elements and captures user actions. Keep it as “dumb” as possible.
• The ViewModel: The intermediary. It transforms Model data for the View, handles presentation state (loading, errors), and processes commands from the View.

Isolating these responsibilities improves testability, reduces coupling, and speeds development. Teams can work in parallel—UI work on Views, logic in Models and ViewModels—without stepping on each other’s toes.

In practice, MVVM fits well with modern state-driven libraries such as React and Next.js because the UI is a function of state rather than manually manipulated DOM nodes².

Understanding the three pillars of MVVM

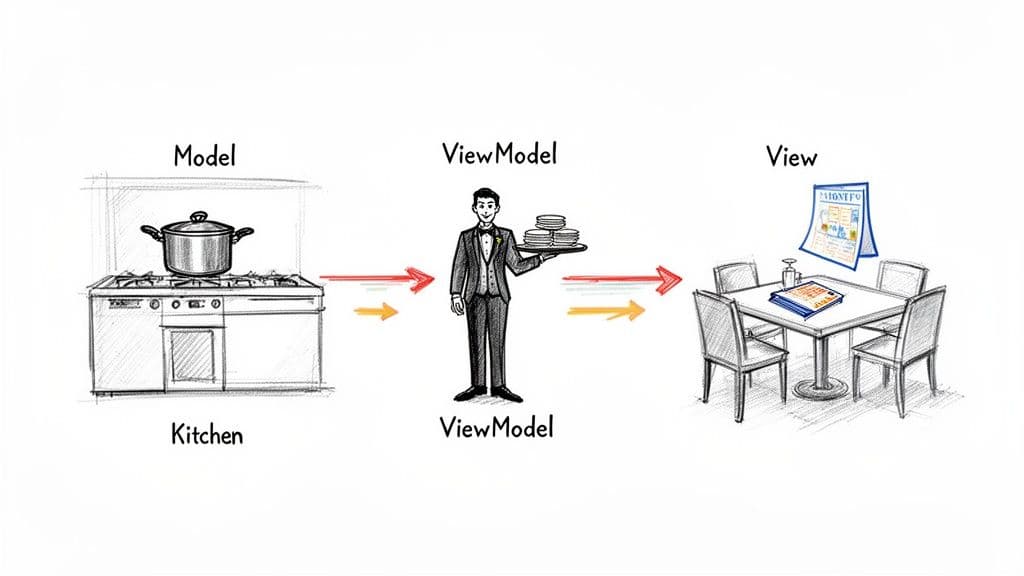

A helpful analogy is a restaurant:

• Model = Kitchen: Manages ingredients (data) and recipes (business logic).
• View = Dining area: What customers see and interact with.
• ViewModel = Waiter: Receives orders, talks to the kitchen, plates the food, and serves it to the dining area.

This flow keeps the UI focused on presentation, the Model focused on data and rules, and the ViewModel focused on shaping data for display and handling user commands.

The Model: the kitchen

The Model manages raw data and the rules that govern it. It’s where data fetching, validation, and persistence live. Keeping this logic decoupled makes it testable and reusable across different Views and ViewModels.

The View: the dining area

The View renders the UI and sends user actions to the ViewModel. In React or Next.js, this is your JSX component: a pure function of the data it receives from the ViewModel.

The ViewModel: the waiter

The ViewModel:

1. Receives user actions from the View.
2. Calls the Model to fetch or update data.
3. Prepares and formats data for the View.
4. Exposes state (data, loading, error) and commands the View can call.

Data binding or state-driven rendering is the key here: when the ViewModel’s state changes, the View updates automatically without manual DOM manipulation².

Comparing MVVM, MVC, and MVP

Choosing the right pattern affects your app for years. MVVM builds on lessons from Model‑View‑Controller (MVC) and Model‑View‑Presenter (MVP), improving decoupling and testability.

MVC

MVC separates Model, View, and Controller, but in practice Controllers often become bloated, creating the “Massive Controller” anti‑pattern.

MVP

MVP made Views more passive and moved logic to Presenters, improving testability. However, Presenters often end up tightly coupled to a single View and add boilerplate.

MVVM

MVVM retains separation of concerns and adds a clean bridge between View and logic through the ViewModel and state-driven updates. Below is a concise comparison:

MVVM’s reactive flow is a great fit for component-based UI libraries like React².

How to implement MVVM in React and Next.js

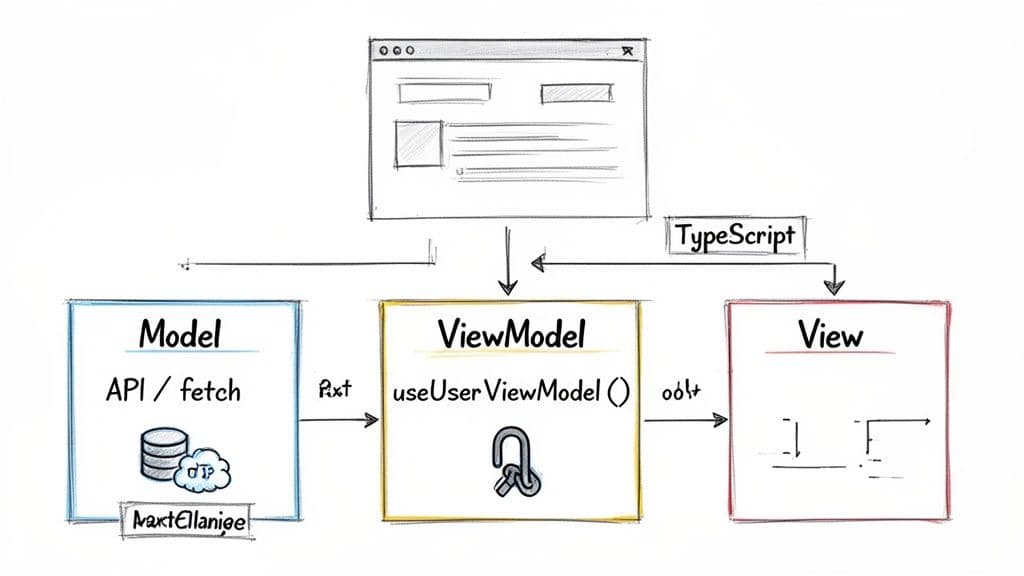

Below is a practical implementation: React + Next.js + TypeScript. We’ll build a simple user dashboard to show how Model, ViewModel, and View fit together.

Defining the Model

// src/models/user.ts

export interface User { id: number; name: string; email: string; isActive: boolean; }

// src/models/userService.ts import { User } from './user';

export const fetchUserData = async (userId: number): Promise => { // Replace with a real API call in production return { id: userId, name: 'Jane Doe', email: 'jane.doe@example.com', isActive: true, }; };

Keep data fetching and types in the Model layer so they can be tested independently of the UI.

Crafting the ViewModel with a custom hook

A React custom hook is an ideal ViewModel. It manages presentation state, calls the Model, and exposes a simple API for the View.

// src/viewmodels/useUserViewModel.ts import { useState, useEffect, useCallback } from 'react'; import { User } from '../models/user'; import { fetchUserData } from '../models/userService';

export const useUserViewModel = (userId: number) => { const [user, setUser] = useState<User | null>(null); const [isLoading, setIsLoading] = useState(true); const [error, setError] = useState<string | null>(null);

const loadUser = useCallback(async () => { setIsLoading(true); setError(null); try { const userData = await fetchUserData(userId); setUser(userData); } catch (err) { setError('Failed to fetch user data.'); } finally { setIsLoading(false); } }, [userId]);

useEffect(() => { loadUser(); }, [loadUser]);

return { user, isLoading, error, reloadUser: loadUser, }; };

This hook hides implementation details and exposes only what the View needs: data, loading state, error state, and commands.

Building the View: a pure UI component

// src/components/UserDashboard.tsx import { useUserViewModel } from '../viewmodels/useUserViewModel';

const UserDashboard = ({ userId }: { userId: number }) => { const { user, isLoading, error, reloadUser } = useUserViewModel(userId);

if (isLoading) { return

if (error) { return (

if (!user) { return

return (

export default UserDashboard;

This View is declarative and free of business logic—the ViewModel handles state, side effects, and formatting.

Effective testing strategies for MVVM

A major benefit of MVVM is testability. With logic moved out of the UI, you can unit test ViewModels and Models without rendering UI, then run lightweight integration tests to confirm the View displays state correctly. Testing frameworks and libraries like Jest and React Testing Library make this workflow efficient and reliable⁴.

Unit testing the ViewModel

Test the ViewModel’s initial state, state transitions (e.g., idle → loading → success/error), and any formatting or validation rules. Mock the Model layer (API services) so your tests are deterministic and fast.

Lightweight view integration tests

Render the View with a mocked or real ViewModel and verify the UI reflects state: is the loading indicator visible? Does the user’s name show when user data is present? These tests confirm the glue between View and ViewModel without re-testing business logic.

A two‑tiered strategy—fast ViewModel unit tests plus focused component tests—gives you confidence without brittle, slow end‑to‑end suites.

Common MVVM mistakes and how to avoid them

Adopting MVVM isn’t a silver bullet. Two common issues are the Massive ViewModel and logic leaking into the View.

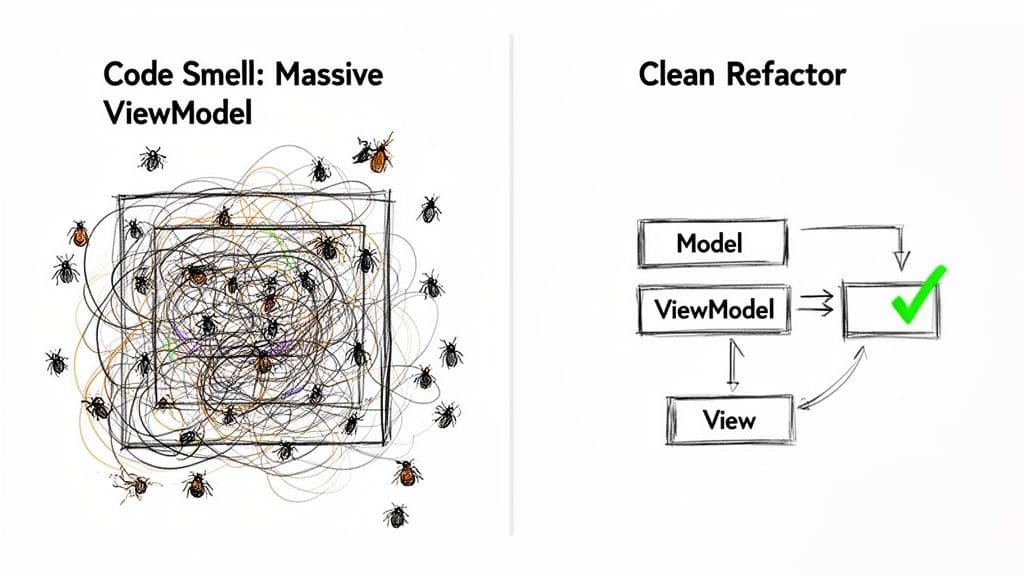

The Massive ViewModel anti‑pattern

When a ViewModel becomes a dump for every piece of state and logic on a page, it becomes hard to test and maintain. Break large ViewModels into smaller, focused ViewModels—one per feature or component—to stay aligned with the single responsibility principle.

Business logic leaking into the View

Keep data formatting, validation, and business rules out of JSX. If you spot a formatting expression in a component, pull it back into the ViewModel and expose a ready‑to‑render string or value.

Migration advice: avoid a big‑bang rewrite

Large rewrites are risky. Use the Strangler Fig approach: incrementally extract small features into ViewModels and Models, and route traffic to the refactored pieces until the legacy code can be retired⁵. This lowers risk and produces immediate benefits.

At Clean Code Guy, we help teams apply clean, scalable architectures like MVVM. If your codebase is slowing you down, consider a targeted refactor plan. Learn more: https://cleancodeguy.com.

Q&A — Common questions about MVVM

Q: When should I use MVVM instead of simpler patterns?

A: Use MVVM when your UI, state, and business logic are growing in complexity. For small projects, adopt the core discipline—keep logic out of components—and scale MVVM patterns as needed.

Q: Can MVVM work with global state libraries like Redux?

A: Yes. Treat global stores as part of the Model. The ViewModel selects the slice of state a View needs and exposes simple commands, keeping components decoupled from store details.

Q: How do I start migrating a legacy codebase to MVVM?

A: Start small. Extract state and business logic from one component into a ViewModel (often a custom hook in React), move API calls into Model services, and iterate using the Strangler Fig pattern⁵.
