How to Create an Architecture System Diagram That Actually Gets Used

Learn how to design a clear and effective architecture system diagram. This guide covers notation, tooling, and best practices for modern software teams.

Introduction

An architecture system diagram is the blueprint for your software. It explains the core components, how they connect, and the data flows between them. A good diagram reduces complexity, aligns teams around a single source of truth, and speeds onboarding and decision making.

Why Your Diagram Is More Than Just Boxes and Lines

Too many teams treat diagrams as a one-and-done artifact drawn at kickoff and never updated. That approach misses the point. A great diagram is a living document and a strategic asset that delivers daily value.

From consulting engagements, I’ve seen a single clear diagram be the difference between a project that scales and one that collapses under complexity. It’s not just drawing boxes; it’s creating shared understanding across the team.

Accelerating Onboarding and Reducing Chaos

Imagine a new developer joining the team. Without a good diagram, their first weeks are a scavenger hunt through code, Slack threads, and stale wiki pages. A well-maintained diagram flips that script. It answers the most pressing questions quickly:

• What are the main services we own?
• How do they communicate?
• Where does the data live?
• What key external dependencies exist?

This visual context helps new hires become productive faster and frees senior engineers for higher-value work. This is critical for production-ready applications where understanding data and service flows matters from day one.

Taming Legacy Systems and Enabling AI

Documenting a legacy system often uncovers hidden dependencies and risky coupling, and it gives you a clear path for refactoring or modernization. A clear diagram also helps AI-powered tools for code analysis and pair programming by providing structural context that makes suggestions more relevant.

Clear architectural diagrams are used in large-scale IT programs to improve alignment and reduce delivery times¹. They also helped regional planning projects reduce integration problems in pilot areas².

Choosing Your Diagramming Language: C4 Versus UML

Choosing a notation is about audience and purpose. The two common options are UML and the C4 model.

UML: The Language of Precision

UML (Unified Modeling Language) is formal and expressive. It has many diagram types for precise, granular designs such as class diagrams, sequence diagrams, and deployment views. UML is ideal when you need detailed technical specification, but it can be too dense for non-technical stakeholders.

C4: The Language of Communication

The C4 model, developed by Simon Brown, is built for clarity and layered communication³. Its four zoom levels make it easy to tailor the diagram to the audience:

• Level 1: Context — the 10,000-foot view showing users and external systems.
• Level 2: Containers — the deployable building blocks like web apps, APIs, and databases.
• Level 3: Components — the key modules inside a container.
• Level 4: Code — an optional mapping to classes or functions.

C4 helps you start conversations with non-technical stakeholders on the Context view and then dive into Containers or Components for engineering discussions. For many web applications, C4 is the pragmatic choice.

The goal isn’t just technical correctness; it’s broad understanding. C4 prioritizes communication.

How to Scope Your Diagram from Context to Code

One common mistake is the "everything diagram": a single chart that tries to show every user, service, table, and call. The result is unreadable.

A better approach is a hierarchy of focused diagrams at different levels of abstraction. The C4 model is perfect for this: think of a set of maps from bird’s-eye view down to street-level code.

Let’s walk through a C4-style hierarchy for a SaaS tool built on React and Node.js to make this concrete.

Level 1: System Context

Start with a simple System Context diagram. Show the system as one box and the external actors and systems it interacts with. For example, a project-estimation app might show:

• Users: Project Manager
• System: microestimates.com application
• External dependencies: Payment Processor (Stripe) and Email Service (SendGrid)

This view is ideal for product managers and non-technical stakeholders.

Level 2: Containers

The Container diagram opens the box to show major deployable components. For a React + Node.js example:

1. React Web Application — the single-page app in the browser.
2. Node.js API Server — business logic, auth, and APIs.
3. PostgreSQL Database — persistent storage.

Show the communication lines: React → API → Database. This view clarifies how the system is actually composed.

Level 3: Components

Zoom into a container to show key logical modules. For the Node.js API server, you might diagram:

• Authentication Controller
• Estimates Service
• Billing Gateway
• Data Access Layer

Component diagrams map closely to the codebase and help new developers find where responsibilities live.

Keeping Your Diagrams Alive with Modern Tools

The biggest enemy of a diagram is time. Whiteboard sketches are quickly out of date, becoming “ghost diagrams.” Treat diagrams like code so they remain accurate.

Embrace "Diagrams as Code"

Tools like PlantUML and Mermaid let you describe diagrams in text and version them in Git. Store .puml or .mmd files next to your source code so diagram updates can be part of the same pull request that changes the architecture⁴.

Weave Diagrams into Your Workflow

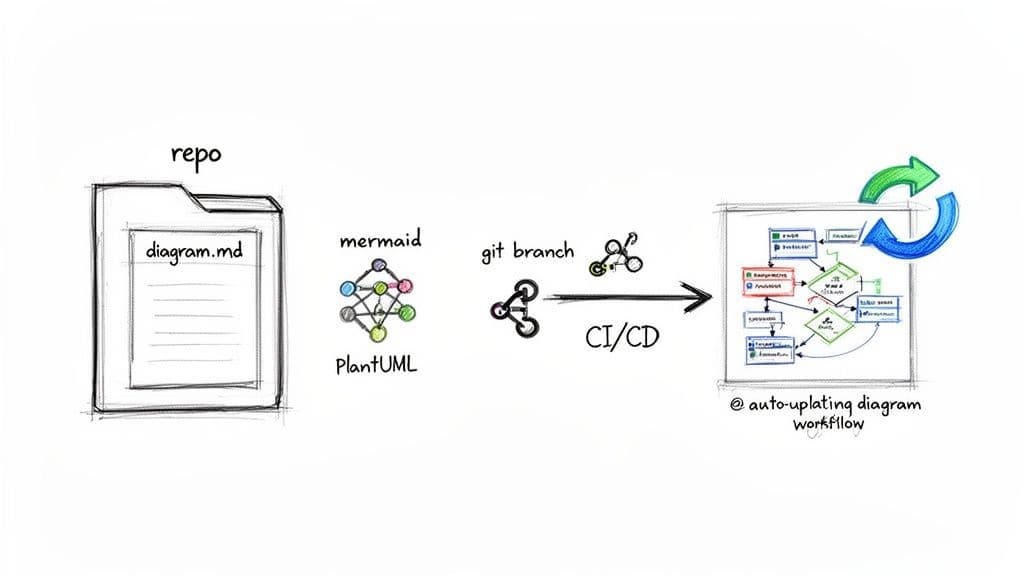

Automate diagram generation in CI/CD so documentation updates when code changes. A typical flow:

• A developer updates code and the diagram source file in the same PR.
• CI builds the diagram image from the text file.
• CI publishes the image to the project documentation site.

This keeps diagrams current without manual effort.

Picking the Right Tool for the Job

Use collaborative whiteboarding (Miro, Lucidchart) for early brainstorming and diagrams-as-code (PlantUML, Mermaid) for versioned, reviewable documentation. Start with a workshop sketch, then codify the agreed design in text so it’s reviewable and automatable.

Avoiding Common Diagramming Pitfalls

Bad diagrams often start with good intentions. Watch for these anti-patterns.

The Everything Diagram

Trying to show everything leads to a noisy diagram. Create focused views at different abstraction levels instead.

The Ghost Diagram

An outdated diagram is worse than none. Treat diagrams like code, keep them in version control, and schedule documentation sprints to reduce documentation debt.

The Notation Nightmare

Mixing notations and symbols creates confusion. Pick a notation and stick with it. Document your legend so everyone reads diagrams the same way.

Frequently Asked Questions About Architecture Diagrams

How often should we update our diagrams?

Update diagrams whenever the architecture changes. Include diagram edits in the same pull request as the code changes. High-level views may change quarterly; lower-level diagrams should be updated continuously.

What’s the best diagram for microservices?

Use layered diagrams: System Context (C4 Level 1), Container Diagram (C4 Level 2) for mapping microservices, and sequence diagrams (UML) for tracing complex interactions.

How do we get the team to actually use diagrams?

Make diagrams visible where people work, require relevant diagram links in PRs, and make them part of new-hire day one material.

Three Concise Q&A Summaries

Q: Why should I invest time in architecture diagrams?

A: They reduce onboarding time, reveal hidden dependencies, and improve cross-team alignment by making system structure explicit.

Q: Which notation should I choose?

A: Choose the notation for your audience. Use C4 for clarity and layered communication; use UML when you need formal technical precision.

Q: How do we keep diagrams accurate?

A: Treat diagrams as code, store their source in Git, and automate image generation in CI so updates are reviewed with code changes.
